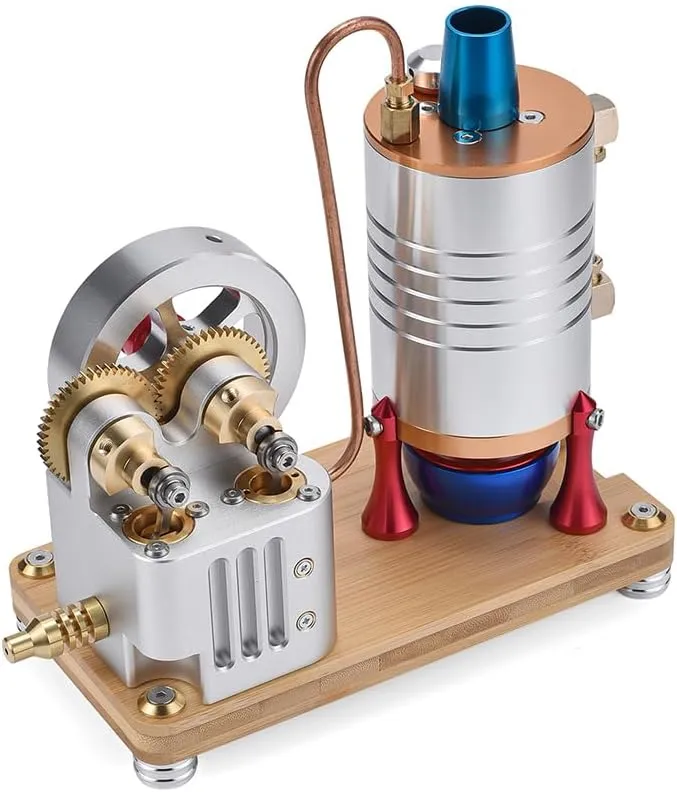

- ✅K007 is a one-way piston vertical steam engine with a set of vertical boilers, featuring a copper conduit for steam introduction and a ventilation valves for cylinder operation
- ✅Equipped with a CNC machined aluminum vertical boiler with a conical combustion chamber for maximum heat absorption and steam generation efficiency
- ✅Innovative design includes safety valves for pressure release and a water level observation system to prevent dry running, ensuring safe and reliable operation
- ✅Brass crankshaft with semi-circular balance design and precision brass gears with minimal axial runout for smooth and efficient power transfer. Large flywheel for added rotational inertia and smooth performance
- ✅Stainless steel connecting rods with precision bearings for quiet and stable operation, extending the engine's lifespan. Versatile and reliable solution for steam power generation or industrial purposes, suitable for steam engine enthusiasts and professionals
Specifications:
.Material: Stainless Steel Brass Aluminum Alloy Bamboo
.Model: All-metal Vertical Twin-cylinder One-way Piston Steam Engine & Boiler Model
.Item Number: K007
.Engine Form: RTR Version
.Boiler Capacity: 167ml
.Boiler Outer Diameter: 68mm
.Piston Diameter: 14mm
.Piston Stroke: 12mm
.Flywheel Diameter: 78mm
.Boiler Endurance: 25min
.Product Weight: 1700g
.Product Dimensions: 22 x 10 x 19.7cm
.Package Dimensions: 26 x 20 x 15cm
.Package Weight: 2100g
.Paking: Box
Package Including
.Steam Engine Set *1
.Boiler *1
.Alcohol Lamp *1
.Instructions *1
