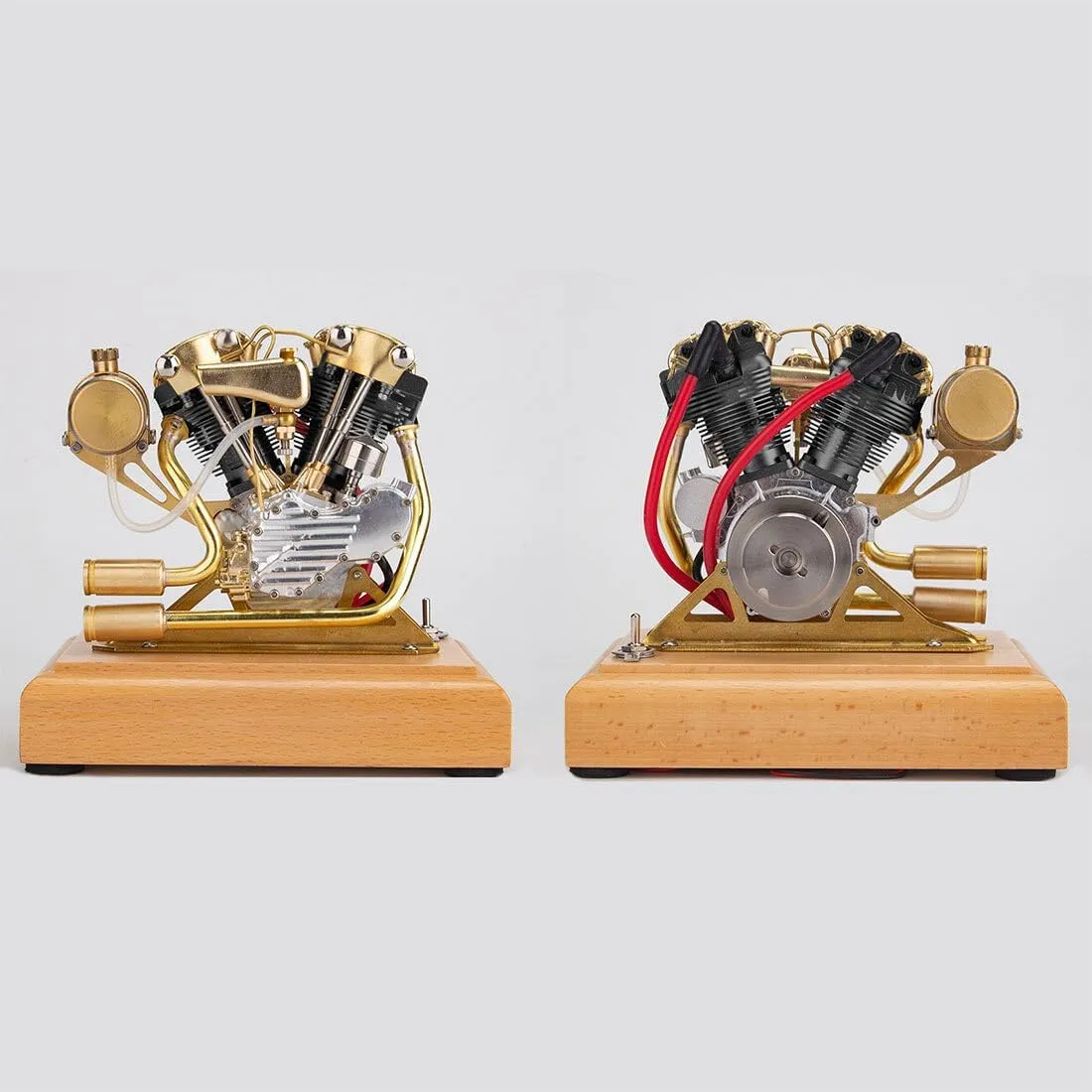

- Miniature gasoline engine model based on the V-twin double-cylinder Knucklehead motorcycle engine in the 1970s
- Classic body lines and cold-cooling structure with authentic engine details, including a new carburetor and lift throttle
- Carefully designed and processed parts made of brass and stainless steel, working with a wooden base for easy display and stable function
- Built with start and ignition equipment, ready to run and friendly to novice model enthusiasts
- Perfect for personal use and a high-end gift for friends and family at major festivals. A coveted collection worth showing and playing with
.Notes:
1. If the engine is failure to start normally under the normal ignition and cylinder compression, it is likely that the carburetor needle will need to be adjusted.
2. After tightening the main oil needle on the carburetor, loosen 1/4 turn and start the flywheel to make the mixture ratio of gasoline and air reach the normal working mixture ratio after several times.
3. Turn off the power switch when the machine stops.
Specifications:
.Material: Brass Stainless Steel
.Item No: R29
.Scale: 1/5
.Form: Ready to Run
.Type: Double-Cylinder Four-Stroke Gasoline Engine
.Displacement: 4.2CC
.Cylinder Diameter: 13mm
.Stroke: 16mm
.Cooling Mode: Air Cooling
.Starting Mode: Manual/Electronic Drill Starting
.Ignition Method: Electronic Igniter
.Spark Plug Type: 3/16-40 English Thread Spark Plug
.Lubrication Method: Mix/Splashs Lubrication (Gasoline/Engine Oil =25/1)
.Fuel Type: 95 Gasoline
.Engine Oil Type: 2T Engine Oil
.Starting Power: 4.5V AA Batteries*3 (Not Included)
.Engine Dimensions: 120*80*110mm
.Wooden Base Dimensions: 150*120*30mm
.Product Dimensions: 15 x 12 x 14cm
.Product Weight: 1650g
.Package Dimensions: 20 x 20 x 20cm
.Package Weight: 1850g
.Packing: Carton Box

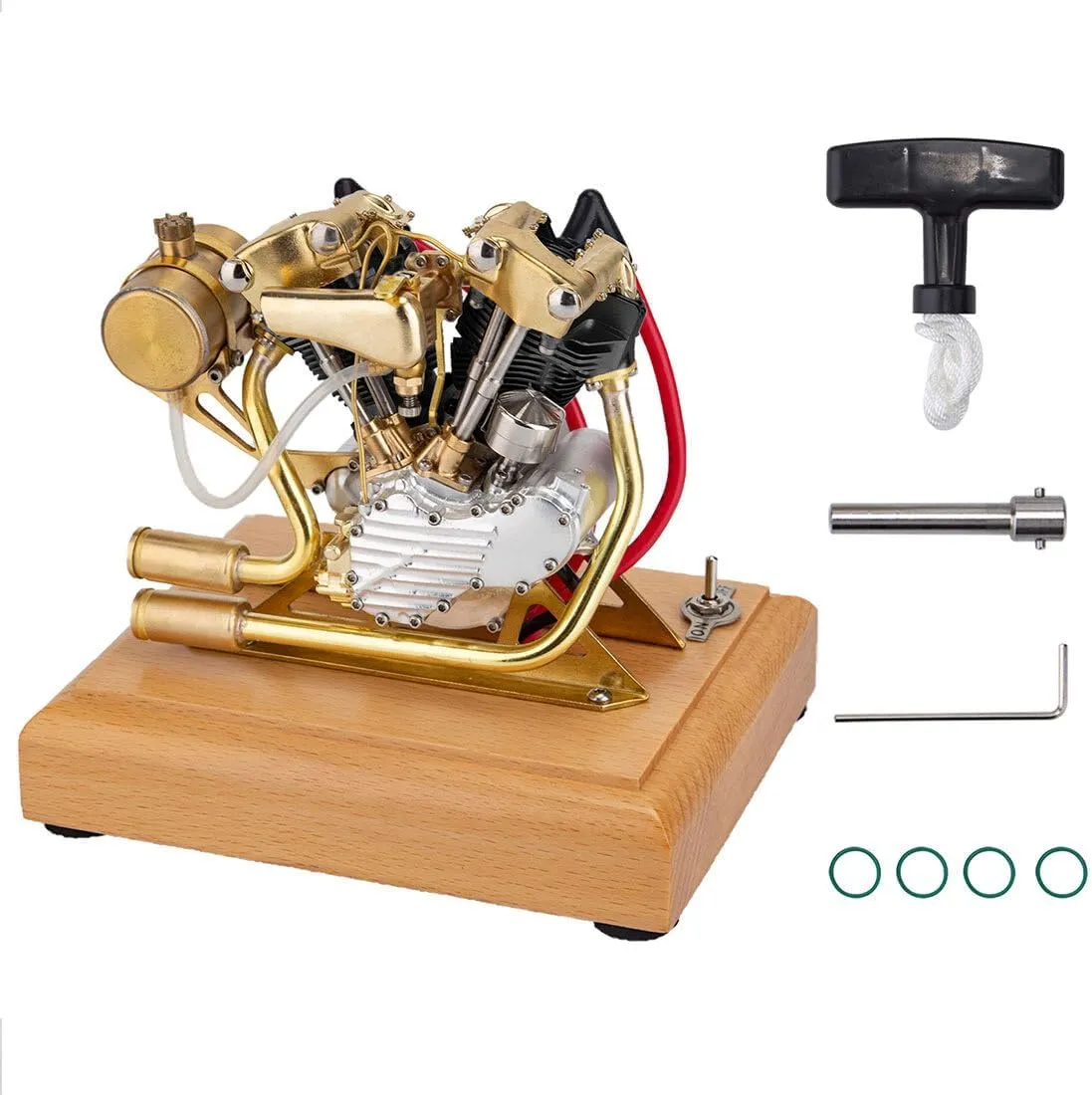

Package Including
.1*Engine
.1*Electric Drill Coupling (Start-up Rod)
.1*Manual Pull Rope
.1*Spare O Ring Set
.1*Instructions
